Evenheat V8 Vitrigraph Glass Kiln

The Ultimate Solution for Glass Vitrigraph Artistry - the Evenheat V8 Vitrigraph Glass Kiln

You’ve just discovered the ultimate vitrigraph kiln: the Evenheat V8, purpose-built for vitrigraph work with innovative features you won’t find anywhere else.

What is Vitrigraph?
Vitrigraph refers to the process of heating glass to a molten state and allowing it to flow out through the bottom of the kiln, where it can be collected and shaped by the user. A true vitrigraph kiln is designed to be elevated, ensuring clear and easy access to the molten glass as it exits.

Why Choose the Evenheat V8?
The V8 features an 8" x 8" chamber and a strategically placed thermocouple, allowing the use of pots up to 7-1/2" in diameter. Its precisely sized glass exit point ensures smooth and reliable pulls for cane work.

The V8’s controls are housed in a pivoting enclosure that adjusts to your preferred viewing angle, whether you’re working at a low, mid, or high position. This attention to ergonomics makes it as comfortable as it is functional.

Stand-Out Stand Design
The V8’s stand-alone stand includes a convenient tool shelf and rod/cane holder, giving you the “extra hand” you’ve always wished for. It also features a power cord catch to keep the cord safe, organized, and out of the way while you work.

Your Search Ends Here
With the Evenheat V8, you’ve found the ultimate vitrigraph kiln. Designed with the user in mind, it’s built to elevate your glasswork to the next level.

Wait... but there's more!

It's not just for Vitrigraph. The Evenheat V8 Vitrigraph Glass Kiln is a versatile and compact multi-purpose kiln, ideal for teachers, home studios, instructors, and even test kiln use. Capable of firing up to 2350°F (1260°C), it supports a wide range of materials and techniques, including glass, ceramics, metal clays, enamels, and china painting. Operating conveniently on a standard household plug, the V8 combines practicality and high performance, making it an excellent choice for creative studios and classrooms alike.

Chamber Dimensions

8" Length x 8" Width x 6.5" Depth - 0.24 Cubic Feet

(20.3 cm L x 20.3 cm W x 16.5 cm D - 6.8 L)

Outer Dimensions

13" Long x 18" Wide x 14.5" High

(33 cm D x 45.7 cm W x 36.8 cm H)

Maximum Temperature

2300°F (1260°C)

Electrical

120 Volts, 14 Amps, 1680 Watts, 60Hz, Single Phase

Power Cord Plug Configuration - NEMA 5-15

Consult with an electrician for proper fuse panel, service wire size, receptacle, and fusing requirements. It is possible that this model, when used as intended for its expected purpose, may be defined as "continuous use". Continuous use is defined as continuous, full power on for 3+ hours.

Model is available in 100V, 200V, 208V, 220V, 230V, 240V. Contact Pottery Pulse to request.

240 volt is a more common alternative request. Be sure to let Pottery Pulse know if this is of interest. Pricing is the same but electrical requirements will differ.

Model will operate properly on both 50Hz and 60Hz.

Model isnotavailable in 3 phase Delta and Wye (380V, 400V and 415V) designs.

Single phase design only.

Shipping Weight

35lb. (16 kg) - Approx.

Shipping Method

UPS

California Prop 65

Studio Pro models may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Studio Pro Furniture Kit (recommended for V8 kiln) contents:

• (2) 7-1/4" x 7-1/4" shelves
• (1) 6 Reed Haik Brush
• (1) 24oz. Shelf Primer, Hotline Hi-Fire Brand

Generally speaking the Studio Pro shelves are rarely posted up and can be set directly onto the fiber base. We do not recommend placing your glass directly on to the fiber base as failure of your shelf primer or other barrier will damage the base.

V8 - Your Vitrigraph Kiln

Vitrigraph Base

The V8 Vitrigraph model features a specially designed floor with a 2.75-inch hole precision-machined into its base, specifically for conducting Vitrigraph projects. Additionally, the V8 serves a dual purpose, functioning as a standard kiln when the base is swapped with an alternative one that lacks the Vitrigraph cut-out. (This is an optional purchase.) This versatility makes the V8 an exceptionally multi-functional tool.

Vitrigraph Pots up to 7.5" in Diameter

The V8 stands out for its optimal utilization of floor space, offering the most effective use of space among kilns of its size. This efficiency in space usage is achieved by strategically placing the thermocouple (the temperature sensor) at the corner of the chamber, rather than on a flat side.

The kiln accommodates Vitrigraph pots with diameters up to 7.5 inches. This larger size allows for more material to be processed in a single session, reducing the need for frequent reloading and waiting.

When it comes to Vitrigraph projects, the V8's design significantly reduces the limitations on project size that are often encountered with other brands, enhancing its versatility and appeal.

Stackable Design

The V8 Vitrigraph features a modular, stackable design, enabling artists to swiftly transition from a vitrigraph setup to a standard kiln configuration within minutes.

This stackable design not only facilitates quick conversion but also simplifies the placement and setup of the kiln, as each component can be positioned independently. For artists who frequently switch between vitrigraph and standard modes, or for those who travel with their equipment, this stackable functionality proves to be extremely convenient and practical.

Swing View Equipped

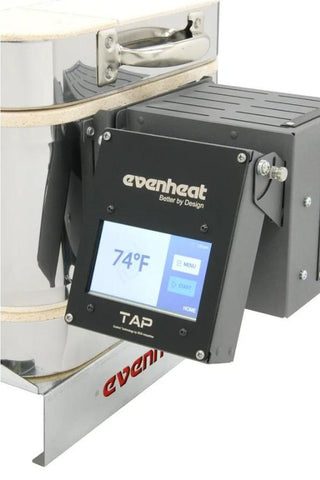

The V8's temperature controls are integrated into Evenheat's innovative Swing View Adjustable Enclosure.

This feature includes a versatile, swing-up enclosure that enables you to pivot and adjust the control panel to your preferred viewing and programming angle. After setting it up, you can easily lay it back down, allowing for clear visibility from across your studio. The process is straightforward and user-friendly.

The Swing View is particularly compatible with touchscreen controls such as the TAP II, Icon+, and Icon, as it allows for the viewing angle to be precisely aligned. This feature is sure to enhance your studio experience.

Swing View Equipped - DOWNWARD FACING!

Vitrigraph kilns are often positioned above eye level, making the controls harder to see and operate—but not anymore.

Evenheat enhanced its Swing View feature on the V8 Vitrigraph, allowing the controls to swing downward for easier access when the kiln is elevated.

It’s one of our favorite innovations! It’s practical, intuitive, and works seamlessly.

Quiet Drive Solid State Relay

The V8 Vitrigraph comes standard with the advanced Quiet Drive Solid State Relay system.

This innovative system delivers precise temperature control, exceptional reliability, and extended heating element life. Quiet Drive stands out as one of the most well-designed and high-performing solid-state relay systems available today. See the Quiet Drive information tab to learn how a solid state relay benefits you.

V8 Vitrigraph Stand

Welcome to the ultimate Vitrigraph stand—the finest on the planet.

The Evenheat V8 stand-alone stand is designed from the ground up with thoughtful features, including a tool rest, rod/cane holder, and power cord catch. Everything you need is right here.

This stand offers 14-1/2 inches of space between the glass exit point and the stand upright, giving you ample room to pull cane and lay glass-on-glass—the essence of Vitrigraph work. With plenty of space, your creative possibilities are endless.

Additionally, the stand provides 37-1/2 inches between the glass exit point and the stand base, allowing for even more freedom to create.

Simply put, the Evenheat V8 stand-alone stand is the gold standard for Vitrigraph stands—no contest.

V8 Vitrigraph Wall-Mounted Stand

Need more vertical space for your creations? The V8 Vitrigraph Wall-Mounted Stand lets you mount your V8 kiln at the height you need for maximum flexibility and pull length.

Built on the same sturdy platform as our stand-alone model, the wall-mounted stand offers all the same features, including the 14-1/2 inches of space between the glass exit point and the wall, giving you plenty of room to work. It also includes the convenient power cord catch to keep cords out of your way while you focus on your art.

The Swing View control's downward positioning feature is especially useful with the wall-mounted stand, making it easy to access and adjust the controls, even at elevated heights.

As a bonus, the wall-mounted stand folds neatly against the wall when not in use, saving space and keeping your workspace tidy!

Relay Access Port

The V8 is designed with a convenient Relay Access Port, which simplifies the process of replacing relays without the hassle of removing the entire control panel. Why is it necessary to have this type of access with a unit that comes standard with a solid-state design where the relay is expected to last the life of kiln?

Because solid-state units also feature a mechanical relay as a crucial safety component.

This intelligent design addresses the inherent nature of solid-state systems, which are never completely on or off and can generate a slight, almost imperceptible leakage current to the elements. The mechanical relay eliminates this issue by physically breaking the circuit, ensuring full isolation and zero leakage. It operates only twice during a firing cycle: once at the beginning to allow current flow and once at the end to completely cut it off. Engineered for long-lasting reliability, the safety relay rarely requires replacement, and the Relay Access Port makes maintenance simple and hassle-free if needed. This is innovation and dependability in action!

Firebrick Construction

The V8 Vitrigraph is built entirely from firebrick, making repairs straightforward, affordable, and hassle-free.

The same applies to the heating element—it's simple to remove, easy to replace, and cost-effective.

At Evenheat, they design their kilns with easy maintenance and repair in mind, and the V8 Vitrigraph is no exception.

Plug it in. And Fire it up.

The V8 Vitrigraph is designed for 120V operation and comes with a standard North American 120V plug, ensuring effortless connection.

Additionally, they offer the V8 Vitrigraph in various global voltage options upon request. For more information on these alternatives, please refer to the Specifications tab.

The V8 Vitrigraph offers an array of control options, including the Icon, RampMaster 3, Icon+, and Tap II.

At Evenheat, they enhance the top control platforms available by incorporating Special Limits thermocouples for accurate temperature measurement and using non-metallic faceplates to ensure excellent Wi-Fi reception for online applications.

Icon

The Icon controller, developed from the innovative Bartlett Spark platform, has set a new standard in the industry with its advanced touchscreen technology, making it the go-to controller for the V8 Vitrigraph.

During the latter half of 2023, the Icon underwent rigorous field testing on the latest version of the Bartlett Industry's Spark platform. This testing phase was a joint venture between Bartlett, Evenheat, and other industry leaders, yielding impressive outcomes. The programming was lauded for its intuitive, user-friendly design, the touchscreen interface garnered widespread praise, and the Quiet Drive Solid State relay exhibited outstanding performance, culminating in a highly successful testing phase.

Consistent with Evenheat's dedication to pioneering control technology, the Icon enhances the Spark platform even further. It integrates Special Limits thermocouples for unmatched temperature accuracy and features non-metallic faceplates to improve Wi-Fi connectivity. This ensures a smooth interaction with the Bartlett online app. These innovations place the Icon at the pinnacle of control technology in the industry, elevating it beyond conventional expectations and delivering superior performance and value.

RampMaster 3

The RampMaster 3, developed from Bartlett Instruments' V6-CF platform, is tailored for glasswork but also shines in applications like heat treating. It's an ideal option for those who prefer a more traditional interface, featuring dedicated buttons and a clear display, over a touchscreen.

As seen in Evenheat Glass Kilns, the RampMaster 3 controller panel exemplifies Evenheat's dedication to producing top-tier control systems.

Consistent with Evenheat's high standards, the RampMaster 3 is equipped with a Special Limits thermocouple for extremely precise temperature measurements. Coupled with the Quiet Drive Solid State relay system, the RampMaster 3 offers outstanding performance while retaining a classic, easy-to-use interface. This blend of traditional usability and advanced technology makes it a preferred choice for craftsmen and artisans who appreciate the balance of old-school simplicity and cutting-edge functionality.

Icon+

The Icon+, built upon the highly-regarded Bartlett Genesis platform, is a game-changer in controller technology. It is meticulously equipped with Special Limits thermocouples for unparalleled accuracy, and its design is enhanced with a non-metallic faceplate, significantly improving Wi-Fi connectivity. This design choice facilitates a flawless integration with the Bartlett online app, propelling the Icon+'s functionality to new heights.

The user interface of the Icon+ is crafted with an emphasis on ease of use, ensuring a smooth and effective experience for the user. Paired with the cutting-edge Quiet Drive Solid State Relay system, the Icon+ stands out as a groundbreaking advancement, redefining and reshaping the standards in the industry. It represents an exemplary blend of Bartlett's technological expertise and Evenheat's dedication to innovative design, marking a significant leap forward in control technology.

TAP II

The TAP II, a standout controller in the Evenheat lineup, is renowned for its large display and user-friendly interface, making it a popular choice for those seeking ease of use. It simplifies the process of setting up and overseeing firing schedules, expertly blending straightforward operation with meticulous accuracy. Similar to the Icon+, the TAP II is outfitted with Special Limits thermocouples and non-metallic faceplates, enhancements that boost Wi-Fi connectivity and ensure a reliable connection to the SDS online app.

Choosing the TAP II guarantees a control experience that is both efficient and intuitive. Its seamless integration with the online app, combined with its precise temperature control capabilities, renders it an exceptional option for artists and craftsmen who value a harmonious mix of practicality and performance in their kiln operations.

The Evenheat Quiet Drive Solid State Relay (SSR) System stands as a testament to the apex of kiln technology. It has an exceptional ability to deliver accurate and consistent heating that translates to superior quality in artistic work.

Exploring the Advantages of Solid-State Relays: A Technological Revolution in Kiln Design

Solid-state relays represent a substantial improvement over traditional mechanical relays, which rely on physical contacts and electromagnetism. SSRs employ a solid semiconductor, eliminating moving parts, thereby minimizing wear and significantly improving the precision of kiln temperature control.

Advantage 1 - Enhanced Longevity:

SSRs are renowned for their extended lifespan, free from the mechanical wear and electrical arcing that are common issues in mechanical relays. Mechanical relays can be identified by their characteristic clicking sound, indicative of operation and eventual wear, necessitating maintenance. By contrast, Evenheat's SSRs operate silently and reliably, significantly prolonging their functional life to align with the lifespan of your kiln.

Advantage 2 - Superior Temperature Control:

While mechanical relays typically cycle between 10 to 14 seconds to balance control and durability, SSRs can cycle as frequently as 120 times per second. This rapid cycling allows for swift adjustments and remarkable temperature precision. Every control system from Evenheat, including the sophisticated Icon controller, benefits from the rapid cycling of SSRs, ensuring unmatched accuracy in temperature regulation.

Advantage 3 - Extended Life of Heating Elements:

SSRs employ Zero Crossing technology, activating at the zero-voltage point in AC power cycles. This approach prolongs the life of heating elements by maintaining optimal voltage levels, unlike mechanical relays, which lack this level of precision.

Design Distinction - 30 Amp Capacity:

Evenheat opts for 30-amp rated SSRs but operates them conservatively at 15 amps. This design choice provides a significant safety margin, ensuring that the SSRs function within their derating curve even under a 15-amp load, leading to cooler operation and extended lifespan. This reflects Evenheat's commitment to superior design and safety standards.

Design Distinction - Externally Mounted SSR Heatsinks:

The durability of SSRs is greatly dependent on effective cooling. To address this, Evenheat mounts the SSR heatsinks externally, promoting better airflow and preventing heat buildup inside the control box. This design strategy prevents heat transfer between the enclosure and the SSRs, with standoffs creating an air gap for additional cooling. This thoughtful design guarantees optimal performance of the SSRs, underscored by an impressive six-year record of zero failures.

Estimated order to ship lead time is 6 weeks.
