Evenheat HF 1210-B Ceramic Kiln

Designed for Porcelain Bisque Firing and Lower Temperature China Painting

Elevate your porcelain, bisque, and china painting to new heights with the Evenheat High Fire 1210-B ceramic kiln, a powerhouse of performance tailored to fit the heart of your studio. This compact dynamo is perfect for artists working in limited spaces, offering a small footprint without sacrificing capability.

With a short depth designed for efficient operation and a robust 240-volt power system, the High Fire 1210-B reaches soaring temperatures up to 2350°F (1288°C), enabling you to fire to cone 10 for that perfect finish. You will get to your max temp quickly, assisted by a chamber built with 3" firebrick.

Whether you're a novice or a seasoned professional, the variety of control options available, including the Icon, RampMaster II, Icon+, and TAP II, offer intuitive programming for accurate and repeatable firing cycles.

Consider opting for the Quiet Drive Solid State output for an even more refined firing experience. This advanced feature not only provides enhanced temperature control throughout the process but also significantly extends the life of the kiln's elements, ensuring that your kiln will be a mainstay in your creative toolkit for years to come.

Compact yet mighty, with dimensions of 11.25" Diameter x 13.5" Deep and a power output of 3120W, this kiln is specifically designed to help you bring out the richest colors and the most delicate details in your ceramic work.

Make the Evenheat HF 1210-B kiln the cornerstone of your studio and watch as your ceramic pieces come to life with clarity, brilliance, and a professional finish that stands out. Your artistry deserves nothing less.

Chamber Dimensions

11.25" Diameter x 13.5" Deep - 0.86 Cubic Feet

(28.6 cm Diameter x 34.3 cm Deep - 24.4 L)

Outer Dimensions

23.5" Long x 17.25" Wide x 27.5" High (includes the 8" stand)

(59.7 cm Deep x 43.8 cm Wide x 69.9 cm High)

Maximum Temperature

2350°F (1288°C) - Cone 10 max.

Electrical

240 Volts, 13 Amps, 3120 Watts, 60Hz, Single Phase

Power Cord Plug Configuration - NEMA 6-20

Consult with an electrician for proper fuse panel, service wire size, receptacle, and fusing requirements. It is possible that this model, when used as intended for its expected purpose, may be defined as "continuous use". Continuous use is defined as continuous, full power on for 3+ hours.

Model will operate properly on both 50Hz and 60Hz​.

Not available in 3 phase Delta or Wye designs​​.

Shipping Weight

​65lb. (29.5 kg) - Approx.

Shipping Method

Freight Truck​​

NRTL Agency Listing
TUV Listed United States and Canada - Designed and Tested to CSA & U/L 499

HF 1210-B models may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

As Evenheat says: Better by Design!

Top Load

The HF 1210-B features a top-loading design and provides a chamber with dimensions of 11.25" in diameter and 13.5" in depth. This kiln is constructed with 3" firebrick, enhancing its ability to reach and maintain high temperatures more efficiently.

Lid Handle

The Evenheat 8" lid handle is thoughtfully crafted for user-friendly operation. Positioned at the wide corner, this handle ensures a secure and effortless grip, even when wearing gloves. Its distinctive design sets it apart, enhancing the overall satisfaction of its use.

Lid Vent

The HF 1210-B features a two-position lid vent, perfect for speeding up the cooling process.

Swing View Equipped

The HF 1210-B temperature controls are seamlessly incorporated into our Swing View Adjustable Enclosure.

This innovative feature is a pivoting and swing-up enclosure that allows you to adjust the control panel to a comfortable viewing and programming angle. When you're done, simply lower it for a clear view from anywhere in your studio. It's a straightforward operation.

The Swing View pairs exceptionally well with touchscreen controls like the TAP II, Icon+, and Icon, as it allows you to align the viewing angle perfectly. You're sure to find its convenience and functionality highly appealing.

3" Firebrick with No Loss in Chamber Volume

Historically, kiln designs were predominantly based on 2-1/2" firebrick. With the rise in popularity of 3" firebrick for high-temperature applications, many kiln manufacturers opted to decrease the firing chamber size to accommodate the thicker firebrick while keeping the external dimensions unchanged.

Evenheat took a different path. Rather than shrinking the chamber size, they maintained its dimensions while increasing the external measurements. This approach guarantees that there is no reduction in chamber volume, and standard kiln furniture can still fit perfectly. It's a considerate design choice that upholds compatibility and convenience.

Swing-Away Peephole Covers

Lid Prop

Relay Access Port

Convenience meets innovation with Evenheat's Relay Access Port. Say goodbye to the hassles of relay replacement that involve complex panel removal.

Unlocking access to the mechanical relays is as easy as removing the access plate – no labyrinth of internal wiring or control panel disassembly required. It's a straightforward, screwdriver-friendly process.

Given that mechanical relays can wear out over time, this relay access port becomes your trusted ally when replacement is due. It offers a simple, hassle-free solution to tackle relay issues with ease.

Pottery Pulse does strongly recommend investing in the Quiet Drive Solid State Relay system, but if budget doesn't allow that, this innovation is a wonderful feature.

Full Stainless Steel Jackets

The concept behind multi-section, multi-jacketed kilns was to reduce manufacturing costs and simplify installation. While these objectives are commendable, they unfortunately often result in a compromise on the kiln's overall quality—a compromise Evenheat refuses to accept.

Their commitment to excellence is reflected in its construction of kilns with complete stainless steel jackets from base to lid. This choice ensures unmatched durability and longevity, guaranteeing a kiln free from leaks, instability, or structural flaws. Choose Evenheat for kilns built with full stainless jackets, where exceptional build quality is not just a feature, it's a promise.

The HF 1210-B offers a variety of control options, including the Icon, RampMaster II, Icon+, and Tap II.

Evenheat elevates these top-notch control platforms by integrating Special Limits thermocouples for accurate temperature sensing and non-metallic faceplates to enhance Wi-Fi reception for online applications. Explore further to learn about these controls and why they represent the pinnacle of quality.

Icon

The Icon, born from the innovative Bartlett Spark platform, disrupts the industry by delivering advanced touchscreen technology at an affordable price point. It's the controller that comes as standard with the HF 1210-B.

In the latter part of 2023, the Icon, built upon Bartlett Industry's new Spark platform, underwent extensive field testing by Bartlett, Evenheat, and industry experts. The results were impressive: programming was found to be intuitive, touchscreen interactions received top marks, and, as expected, the Quiet Drive Solid State relay performed flawlessly, concluding the tests successfully.

In line with Evenheat's commitment to enhancing control designs, the Icon improves upon the Spark platform by introducing features like Special Limits thermocouples for unmatched temperature accuracy and non-metallic faceplates to boost Wi-Fi connectivity for the Bartlett online app. The Icon sets a new benchmark in the industry, delivering exceptional performance and value.

RampMaster II

The RampMaster II emerges from the esteemed Bartlett Instruments V6-CF platform, custom-crafted with a focus on ceramic applications. Bucking the touchscreen trend, the RampMaster II boasts dedicated buttons and a clear display, tailored for enthusiasts who appreciate tactile controls.

Consistent with Evenheat's dedication to excellence, the RampMaster II features a Special Limits thermocouple, ensuring precise temperature monitoring. When paired with the Quiet Drive Solid State Relay system, it delivers peak performance, seamlessly blending advanced technology with a user-friendly interface.

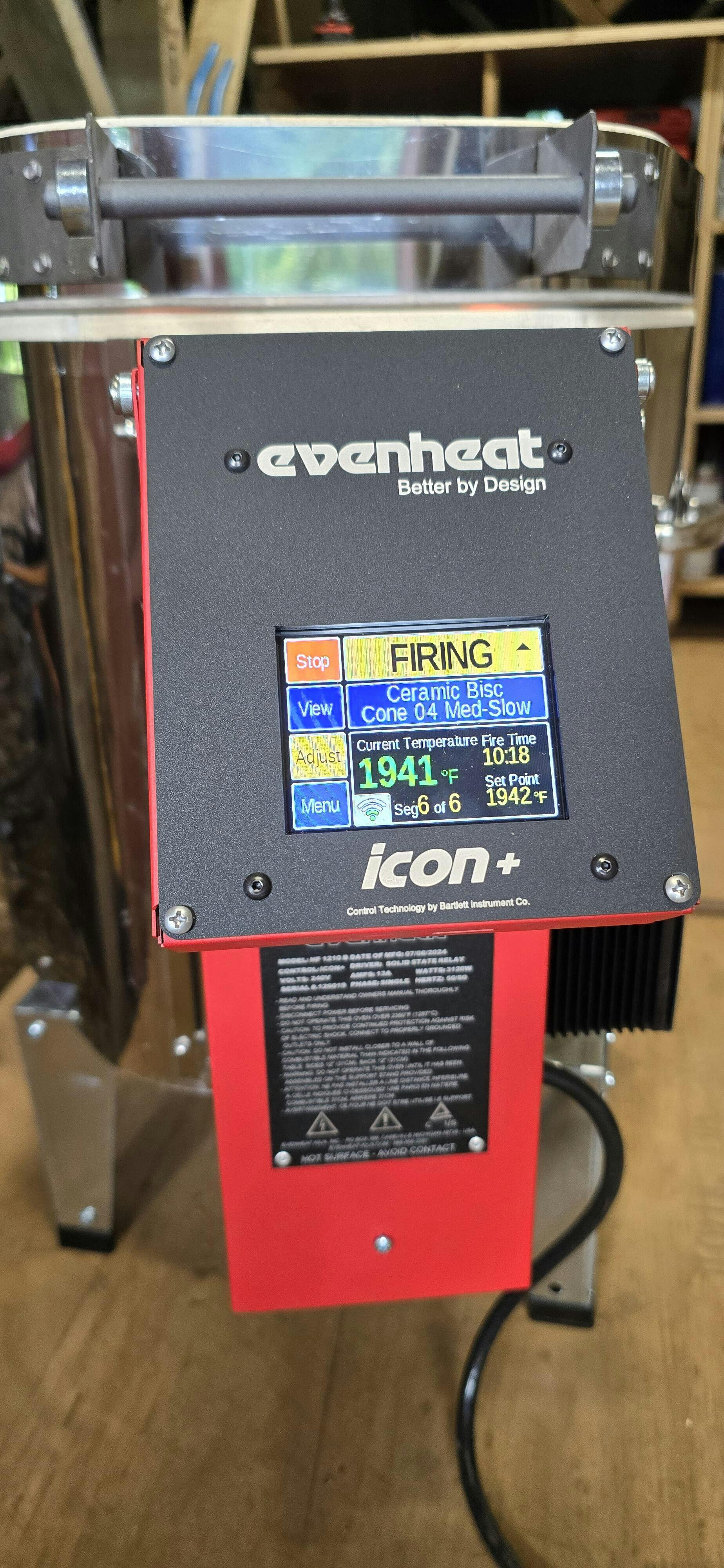

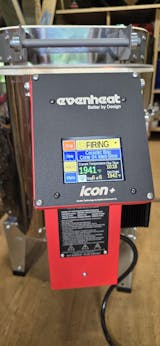

Icon+

Emerging from the prestigious Bartlett Genesis platform, the Icon+ takes the experience to the next level with the integration of Special Limits thermocouples, delivering precision that sets new standards. Enhancing its capabilities further, the Icon+ boasts a non-metallic faceplate that optimizes Wi-Fi connectivity for seamless integration with the Bartlett online app, elevating it to unmatched performance heights.

User interaction with the Icon+ is incredibly intuitive, ensuring a seamless experience. When combined with the Quiet Drive Solid State Relay system, the Icon+ achieves remarkable performance, establishing a new benchmark in the field.

The Icon+ is the perfect fusion of Bartlett's control expertise and Evenheat's innovative design, offering industry-leading control performance.

TAP II

The TAP II Controller takes the lead as Evenheat's top choice among temperature controllers, featuring a generously sized screen and an intuitive interface. Crafting and executing firing schedules becomes effortlessly straightforward with this controller. The sophisticated technology behind the TAP II ensures precise and reliable outcomes, especially when combined with the Quiet Drive Solid State Relay system.

Say goodbye to the obstacles presented by mechanical relays and wave farewell to the costs tied to their frequent maintenance.

Embrace the innovation introduced by Evenheat's Quiet Drive Solid State Relay System, a masterpiece of design without moving components, promising a lifetime free from wear and tear. Revel in the system's exceptional functionality, delivering precise and controlled heating for enduring peak performance.

Exploring Relay Technology: Solid-state relays (SSRs) emerge as a robust and dependable alternative to traditional mechanical relays, which rely on physically moving metal contacts and electromagnetic coils. SSRs employ a solid semiconductor block devoid of moving parts, eliminating physical wear and offering significant advantages for kiln temperature control.

Advantage 1 - Unmatched Reliability: SSRs boast unparalleled longevity. Free from the mechanical wear of moving parts and the electrical arcing seen in mechanical relays, they outlast their traditional counterparts. If you've ever heard the repetitive clicking of a kiln, it's the sound of mechanical relays in action. Over time, this constant movement leads to wear and eventual failure, resulting in repair expenses. Evenheat's SSRs promise quiet and steadfast performance that endures as long as your kiln or oven.

Advantage 2 - Precision Temperature Control: Mechanical relays are bound by cycling limitations to balance control effectiveness and relay lifespan, typically capping at one cycle every 10 to 14 seconds. In contrast, SSRs operate at an impressive frequency of 120 cycles per second, enabling swift adjustments and exceptional temperature precision. All Evenheat controls, including the now-standard Icon controller that replaces the previous basic Set-Pro controller, harness the rapid cycling capability of SSRs to ensure precise temperature management.

Advantage 3 - Extended Heating Element Life: Solid-state relays incorporate Zero Crossing technology, switching on and off precisely at the zero-voltage point of AC power fluctuations. This feature significantly extends the lifespan of heating elements, ensuring they operate at the ideal voltage and minimizing wear compared to mechanical relays lacking this technology.

Design Excellence - 30 Amp Capacity: Evenheat carefully selects SSRs rated for 30 amps but operates them at a conservative 15 amps, providing a substantial safety margin for reliable, sustained performance. This approach keeps the SSRs comfortably within their derating curve, even under a 15 amp load, ensuring cool operation and longevity, all backed by Evenheat's dedication to quality.

Design Excellence - External SSR Heatsinks: Effective cooling plays a vital role in SSR longevity. Evenheat addresses this by externally mounting SSR heatsinks, facilitating unrestricted airflow and preventing heat buildup within the control enclosure. This design isolates heat transfer between the control enclosure and SSR, supported by standoffs that create a cooling air gap. This meticulous arrangement guarantees optimal SSR performance, substantiated by an impressive six-year track record of zero failures.

Estimated order to ship lead time is 6 weeks.
