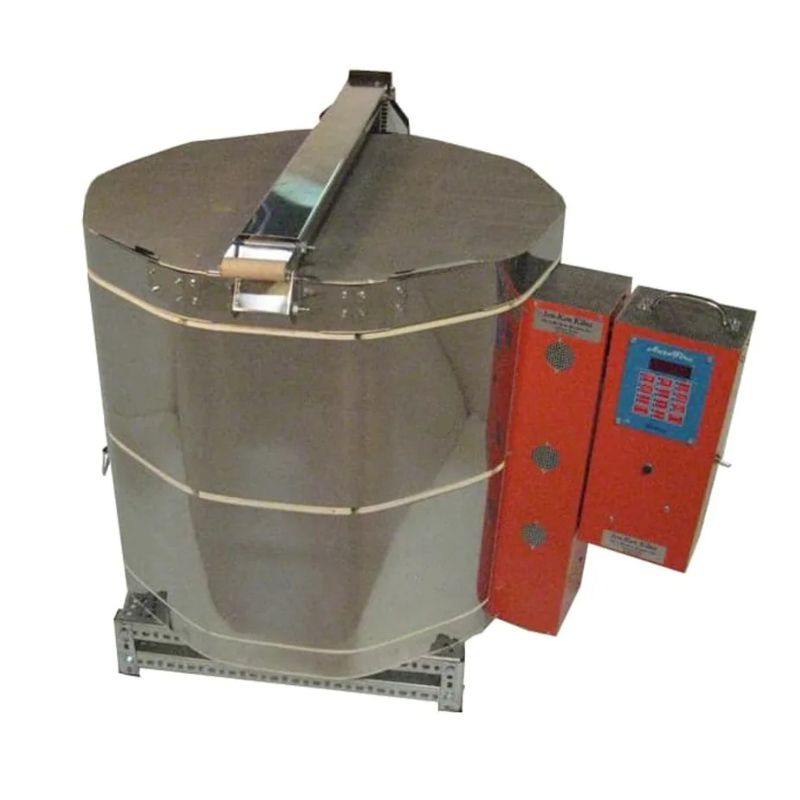

Closed, round-shaped AF 2422 3-inch brick ceramic kiln with heavy-duty mega coils from Jen-Ken with electrical box and an Orton AutoFire 4000 12-button controller on the right side.

Jen-Ken AF Mega Coil 2422 3" Ceramic/Pottery Kiln

Save $948.00
$4,739.00
$3,791.00
Financing Information i

Financing through Approve is exclusively for business equipment loans and is available to all types of organizations, excluding personal loans. Minimum purchase price of $1,500.

A production-ready kiln built for serious ceramic artists and studios. The Mega Coil system delivers exceptional lifespan, fast coil changes, and reliable high-fire performance. Includes digital Orton control, lid lifters, and solid-state relays, with upgrade options for touchscreen controllers and furniture kits for maximum firing efficiency.

Important Details:

  • Chamber size: 24" W x 22" H
  • Volume: 5.76 cubic feet
  • Maximum temperature: 2300°F
  • Electrical: 240V/42A
  • Required breaker: 50A

iNot sure what product options to choose? Check out our Kiln FAQs below!

Controller selection
Furniture selection

Need a formal quote or to request a W9? Let us know!

Interested in all Reviews ever provided to Pottery Pulse, regardless of product? Click here.

Jen-Ken AF Mega Coil 2422 Ceramic & Pottery Kiln – Built for Production Power, Speed & Reliability

The Jen-Ken AF Mega Coil 2422 is engineered for serious ceramic artists, makerspaces, and production studios that demand fast heat-up, consistent results, and minimal downtime. This kiln takes Jen-Ken’s proven 22"-deep format and upgrades it with oversized, super-heavy-gauge Mega Coils—designed to last 10–15 years longer than standard kiln elements and to be replaced in minutes, not hours.

Say goodbye to waiting for repair techs—you can replace a coil in about 10 minutes, thanks to external color-coded leads and stress-free plug-in connections. Combined with a wall-mounted control enclosure that stays cooler for longer controller life, this kiln is built to stay online and keep your production moving.

Perfect for studios running back-to-back cone-6 cycles, small-batch pottery shops, and teaching environments, the AF Mega Coil 2422 delivers industrial-level reliability in a manageable footprint.

Professional-Grade Digital Control

Comes standard with the Orton AutoFire 4000 12-Key Controller in a rugged wall-mount enclosure. Enjoy:

  • Full cone-fire programs (slow/medium/fast)

  • 25 blank user programs

  • Heat-work compensation for aging elements

  • Accurate digital temperature display

  • Automatic cost-per-firing calculation

Upgrade choices include:

  • Orton AutoFire Slide Touchscreen Controller – Intuitive touch interface, PID logic, multi-program flexibility

  • TAP II Touchscreen Controller by SDS Industries – Wi-Fi enabled, remote control, unlimited program storage, cloud backups, auto software updates

Premium Build & Performance Features

  • 4 oversized Mega Coils for unmatched lifespan & heating stability

  • External color-coded coil leads for lightning-fast element changeout

  • Solid-State Relays (included) for silent, precise power cycling

  • Lid lifters included for effortless opening and closing

  • Accurate 8-gauge thermocouple for real-time temperature monitoring

  • Flexible cone-fire settings + custom programs

Optional Enhancements

Furniture Kit (Shelves & Posts)
Add a full kiln furniture kit for multilayer loading, bisque batches, and glaze runs—maximize internal volume and firing efficiency.

Controller Upgrades
Customize your interface & automation features to your firing workflow and studio needs.

Key Specs & Highlights

  • Designed for professional ceramic studios & production potters

  • Handles frequent cone-6 firing cycles with ease

  • Massive coil lifespan advantage vs traditional kilns

  • Rapid maintenance for near-zero downtime

  • Wall-mounted controller keeps electronics cool & clean

  • Includes lid lifters, stand, manual, SSRs & 2-year warranty

The Production Studio Workhorse

If you're looking for a kiln that:
✅ Fires consistently, day after day
✅ Minimizes downtime & maintenance
✅ Delivers long-term value with extreme element longevity
✅ Gives you pro-grade control & reliability

…the Jen-Ken AF Mega Coil 2422 is the upgrade your studio deserves.

Built for potters who don’t have time to wait—just fire, unload, reload, and keep making.

  • Model: AF Mega Coil 2422 3"
  • Inside Chamber Dimensions: 24" W x 22" H
  • Cubic Feet: 5.76
  • Overall Dimensions (Footprint and Height of Kiln Body): 30" W x 28" H
  • Maximum Temperature: 2300°F/1260°C
  • Elements: side firing
  • Kiln weight: 275 pounds
  • Amperage/volts: 42 amps / 240 volts
  • Watts: 8,640
  • Breaker: 50 amp
  • Plug Configuration: NEMA 6-50
  • Circuit wire gauge: 8

The furniture kit option includes:

  • 3 layers of shelves: 2 full, 2 half
  • 3 each: 1, 2, 4, and 6 inch posts
  • 1 pound of shelf primer

Estimated order-to-ship lead time is approximately 6 weeks.

We get it. You've got a lot of choices when it comes to online retailers. Here's why we think you should shop with us at Pottery Pulse.

If this specific product has already been reviewed, you will find it below all the product information tabs, and above the "You may also like..." section.

If it has not, you can still find all reviews left from Pottery Pulse customers at this Reviews page on our site. Please click that link and read what other customers are saying as you consider whether or not to provide your business to Pottery Pulse.

We are confident we sell outstanding products from outstanding manufacturers, and that we'll top the best customer experience you can find anywhere. We are devoted to our customers because we simply are out of business without them.

Simply put, you could say that makes you the center of our universe.

FAQs - Configuring Your Kiln

There are certain selections you must choose. And then there are options you can click on or ignore. The answers below should help you make the best choices for you.

 Which Kiln Voltage Should I Select?

Higher voltage means lower amperage draw and greater efficiency, which can save money long term. 240V and 208V cost the same—most home studios use 240V, while 208V is common in schools or large facilities. Amperage refers to the amount of electrical current a kiln draws—higher amps require heavier wiring and breakers.

What's The Difference Between Single-Phase and Three-Phase?

Single-phase is what almost all homes have. If your facility has three-phase, you can choose either—but three-phase is typically the better long-term option due to smoother power and improved efficiency.

Which Relay Option Do I Need?

Mechanical relays are standard and reliable. Solid-state relays (SSR) offer silent operation, faster cycling, greater precision, and longer lifespan—ideal for frequent or high-accuracy firings.

What Are The Differences Between Kiln Controllers?

The following controllers are used across kilns sold by Pottery Pulse. Not all models offer every option—available controllers are listed on each product page. Some kilns include only the standard controller, while most allow upgrades for added precision and convenience.

Olympic Kilns

  • Infinite Switch – Manual dial control for simple heat adjustments.
  • KilnStar – Digital controller with preset and user-defined programs.
  • Genesis – Advanced touchscreen interface with Wi-Fi and data logging.

Evenheat Kilns

  • Icon – Digital 3-button controller for straightforward firing.
  • RampMaster II – Manual digital controller for ceramic kilns; flexible ramp/hold programming.
  • RampMaster 3 – Updated version for glass kilns with refined interface.
  • Icon+ – Enhanced digital control with expanded profiles and precision.
  • TAP II – Smart touchscreen controller with Wi-Fi, data tracking, and remote access.

Hot Shot Kilns

  • Novus – “Set & Go” controller: set a target temperature and it does the rest (no segments).
  • Spark – Entry-level touchscreen controller with intuitive operation and limited program control.
  • TAP II – Smart touchscreen controller with Wi-Fi and real-time monitoring.

Jen-Ken Kilns

  • Orton AF3P 3-Button – Reliable and straightforward for basic firing.
  • Orton AutoFire 4000 12-Key – Expanded program capacity and fine control.
  • Orton AutoFire Slide Touchscreen – Modern, responsive touchscreen interface.
  • TAP II Touchscreen Smart Controller – Wi-Fi connectivity and real-time data tracking.

What Are Collars For?

Not all kilns can use a collar, but Olympic’s Hot Box kilns can be ordered with a collar to expand versatility. A blank collar simply adds height to the firing chamber, while a bead collar adds the same height and includes a built-in bead or annealing door for quick-access lampwork projects.

What Does The Power Interrupt Switch Do?

This safety feature automatically cuts power to the heating elements whenever the kiln lid or door is opened. It prevents accidental burns, protects elements, and resumes power only when safely closed. (Also called an automatic lid shutoff on Olympic kilns.)
Description

Jen-Ken AF Mega Coil 2422 Ceramic & Pottery Kiln – Built for Production Power, Speed & Reliability

The Jen-Ken AF Mega Coil 2422 is engineered for serious ceramic artists, makerspaces, and production studios that demand fast heat-up, consistent results, and minimal downtime. This kiln takes Jen-Ken’s proven 22"-deep format and upgrades it with oversized, super-heavy-gauge Mega Coils—designed to last 10–15 years longer than standard kiln elements and to be replaced in minutes, not hours.

Say goodbye to waiting for repair techs—you can replace a coil in about 10 minutes, thanks to external color-coded leads and stress-free plug-in connections. Combined with a wall-mounted control enclosure that stays cooler for longer controller life, this kiln is built to stay online and keep your production moving.

Perfect for studios running back-to-back cone-6 cycles, small-batch pottery shops, and teaching environments, the AF Mega Coil 2422 delivers industrial-level reliability in a manageable footprint.

Professional-Grade Digital Control

Comes standard with the Orton AutoFire 4000 12-Key Controller in a rugged wall-mount enclosure. Enjoy:

  • Full cone-fire programs (slow/medium/fast)

  • 25 blank user programs

  • Heat-work compensation for aging elements

  • Accurate digital temperature display

  • Automatic cost-per-firing calculation

Upgrade choices include:

  • Orton AutoFire Slide Touchscreen Controller – Intuitive touch interface, PID logic, multi-program flexibility

  • TAP II Touchscreen Controller by SDS Industries – Wi-Fi enabled, remote control, unlimited program storage, cloud backups, auto software updates

Premium Build & Performance Features

  • 4 oversized Mega Coils for unmatched lifespan & heating stability

  • External color-coded coil leads for lightning-fast element changeout

  • Solid-State Relays (included) for silent, precise power cycling

  • Lid lifters included for effortless opening and closing

  • Accurate 8-gauge thermocouple for real-time temperature monitoring

  • Flexible cone-fire settings + custom programs

Optional Enhancements

Furniture Kit (Shelves & Posts)
Add a full kiln furniture kit for multilayer loading, bisque batches, and glaze runs—maximize internal volume and firing efficiency.

Controller Upgrades
Customize your interface & automation features to your firing workflow and studio needs.

Key Specs & Highlights

  • Designed for professional ceramic studios & production potters

  • Handles frequent cone-6 firing cycles with ease

  • Massive coil lifespan advantage vs traditional kilns

  • Rapid maintenance for near-zero downtime

  • Wall-mounted controller keeps electronics cool & clean

  • Includes lid lifters, stand, manual, SSRs & 2-year warranty

The Production Studio Workhorse

If you're looking for a kiln that:
✅ Fires consistently, day after day
✅ Minimizes downtime & maintenance
✅ Delivers long-term value with extreme element longevity
✅ Gives you pro-grade control & reliability

…the Jen-Ken AF Mega Coil 2422 is the upgrade your studio deserves.

Built for potters who don’t have time to wait—just fire, unload, reload, and keep making.

Specifications
  • Model: AF Mega Coil 2422 3"
  • Inside Chamber Dimensions: 24" W x 22" H
  • Cubic Feet: 5.76
  • Overall Dimensions (Footprint and Height of Kiln Body): 30" W x 28" H
  • Maximum Temperature: 2300°F/1260°C
  • Elements: side firing
  • Kiln weight: 275 pounds
  • Amperage/volts: 42 amps / 240 volts
  • Watts: 8,640
  • Breaker: 50 amp
  • Plug Configuration: NEMA 6-50
  • Circuit wire gauge: 8

The furniture kit option includes:

  • 3 layers of shelves: 2 full, 2 half
  • 3 each: 1, 2, 4, and 6 inch posts
  • 1 pound of shelf primer
Current lead times

Estimated order-to-ship lead time is approximately 6 weeks.

Why Buy From Us

We get it. You've got a lot of choices when it comes to online retailers. Here's why we think you should shop with us at Pottery Pulse.

Customer Reviews

If this specific product has already been reviewed, you will find it below all the product information tabs, and above the "You may also like..." section.

If it has not, you can still find all reviews left from Pottery Pulse customers at this Reviews page on our site. Please click that link and read what other customers are saying as you consider whether or not to provide your business to Pottery Pulse.

We are confident we sell outstanding products from outstanding manufacturers, and that we'll top the best customer experience you can find anywhere. We are devoted to our customers because we simply are out of business without them.

Simply put, you could say that makes you the center of our universe.
