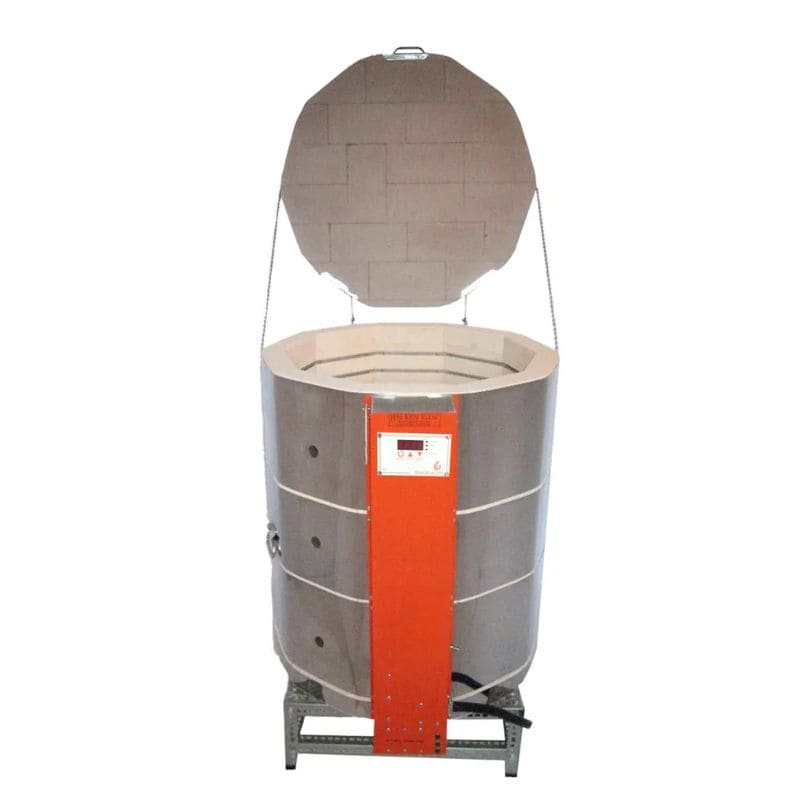

Straight-on view of fully-opened round-shaped AF3C 2431 Ceramics and Pottery kiln fro Jen, sitting on a small metal stand.

Jen-Ken AF3C 2431 3" Ceramic/Pottery Kiln

Save $1,042.00
$5,209.00
$4,167.00
Financing Information i

Financing through Approve is exclusively for business equipment loans and is available to all types of organizations, excluding personal loans. Minimum purchase price of $1,500.

A production-strength kiln with 3" insulation for greater efficiency and temperature stability. Includes lid lifters and SSRs for smooth, durable operation. Perfect for high-demand studios running regular cone-6 and occasional cone-8 firings with precise digital control.

Important Details:

  • Chamber size: 24" W x 31" H
  • Volume: 8.11 cubic feet
  • Maximum temperature: 2300°F
  • Electrical: 45A and 55A configs available
  • See specifications tab for details

iNot sure what product options to choose? Check out our Kiln FAQs below!

Controller selection
Relay - Amp selections
Furniture selection

Need a formal quote or to request a W9? Let us know!

Interested in all Reviews ever provided to Pottery Pulse, regardless of product? Click here.

Jen-Ken AF3C 3" 2431 Ceramic & Pottery Kiln – Production-Grade Insulation & Power Options

The Jen-Ken AF3C 2431-3" upgrades the classic 2431 with 3" firebrick insulation for 20% more thermal efficiency, heat retention, and longevity — making it ideal for frequent firings and production use. Great for studios running multiple loads per day at cone 04–06, and capable of reaching cone 8 (2300°F) when needed.

Despite its generous capacity, it still fits through a standard 30" doorway. Lid lifters come included for effortless loading and unloading.

This model adds full electrical flexibility:

  • 45A NEMA 6-50 plug OR

  • 55A direct-wire (recommended for heavy high-fire cycles)

Choose Your Controller

Standard controller: Orton AutoFire 12-Key (AF3000)
Upgrades available:

  • Orton AutoFire Slide Touchscreen – PID precision, 35 schedules

  • TAP Touchscreen Smart Controller – Wi-Fi control, unlimited profiles, smart updates

Standard & Optional Enhancements

  • ✅ 3" brick walls/lid — included

  • ✅ Solid-State Relays — smooth, quiet, long-life firing

  • Furniture Kit available for multi-shelf production loading

Key Features

  • Best for studios, classrooms, and production potters

  • Cone 6 standard; cone 8 capable

  • True production insulation with 3" brick

  • Fits through standard 30" doors

  • 45A plug or 55A direct-wire options

  • Lid lifters included

  • Includes stand, manual, and 2-year warranty

Built for makers who fire often, fire big, and need a kiln that keeps pace with their growth — day after day, firing after firing.

  • Model: AF3C 2431 3"
  • Inside Chamber Dimensions: 24" W x 31" H
  • Cubic Feet: 8.11
  • Maximum Temperature: 2300°F/1260°C
  • Elements: side firing
  • Kiln weight: 275 pounds
  • Volts: 240
  • Amperage: 45A with NEMA 6-50 Plug, 55A direct wired
  • Watts: 10,800 with 45A config, 13,200 with 55A config
  • Breaker: 60 amp for 45A config, 70A for 55A config
  • Circuit wire gauge: 6 with 45A config, 4 with 55A config

The furniture kit option includes:

  • 4 layers of shelves: 3 full, 2 half
  • 6 each: 1, 2, 4, and 6 inch posts
  • 1 pound of shelf primer

Estimated order-to-ship lead time is approximately 6 weeks.

We get it. You've got a lot of choices when it comes to online retailers. Here's why we think you should shop with us at Pottery Pulse.

If this specific product has already been reviewed, you will find it below all the product information tabs, and above the "You may also like..." section.

If it has not, you can still find all reviews left from Pottery Pulse customers at this Reviews page on our site. Please click that link and read what other customers are saying as you consider whether or not to provide your business to Pottery Pulse.

We are confident we sell outstanding products from outstanding manufacturers, and that we'll top the best customer experience you can find anywhere. We are devoted to our customers because we simply are out of business without them.

Simply put, you could say that makes you the center of our universe.

FAQs - Configuring Your Kiln

There are certain selections you must choose. And then there are options you can click on or ignore. The answers below should help you make the best choices for you.

 Which Kiln Voltage Should I Select?

Higher voltage means lower amperage draw and greater efficiency, which can save money long term. 240V and 208V cost the same—most home studios use 240V, while 208V is common in schools or large facilities. Amperage refers to the amount of electrical current a kiln draws—higher amps require heavier wiring and breakers.

What's The Difference Between Single-Phase and Three-Phase?

Single-phase is what almost all homes have. If your facility has three-phase, you can choose either—but three-phase is typically the better long-term option due to smoother power and improved efficiency.

Which Relay Option Do I Need?

Mechanical relays are standard and reliable. Solid-state relays (SSR) offer silent operation, faster cycling, greater precision, and longer lifespan—ideal for frequent or high-accuracy firings.

What Are The Differences Between Kiln Controllers?

The following controllers are used across kilns sold by Pottery Pulse. Not all models offer every option—available controllers are listed on each product page. Some kilns include only the standard controller, while most allow upgrades for added precision and convenience.

Olympic Kilns

  • Infinite Switch – Manual dial control for simple heat adjustments.
  • KilnStar – Digital controller with preset and user-defined programs.
  • Genesis – Advanced touchscreen interface with Wi-Fi and data logging.

Evenheat Kilns

  • Icon – Digital 3-button controller for straightforward firing.
  • RampMaster II – Manual digital controller for ceramic kilns; flexible ramp/hold programming.
  • RampMaster 3 – Updated version for glass kilns with refined interface.
  • Icon+ – Enhanced digital control with expanded profiles and precision.
  • TAP II – Smart touchscreen controller with Wi-Fi, data tracking, and remote access.

Hot Shot Kilns

  • Novus – “Set & Go” controller: set a target temperature and it does the rest (no segments).
  • Spark – Entry-level touchscreen controller with intuitive operation and limited program control.
  • TAP II – Smart touchscreen controller with Wi-Fi and real-time monitoring.

Jen-Ken Kilns

  • Orton AF3P 3-Button – Reliable and straightforward for basic firing.
  • Orton AutoFire 4000 12-Key – Expanded program capacity and fine control.
  • Orton AutoFire Slide Touchscreen – Modern, responsive touchscreen interface.
  • TAP II Touchscreen Smart Controller – Wi-Fi connectivity and real-time data tracking.

What Are Collars For?

Not all kilns can use a collar, but Olympic’s Hot Box kilns can be ordered with a collar to expand versatility. A blank collar simply adds height to the firing chamber, while a bead collar adds the same height and includes a built-in bead or annealing door for quick-access lampwork projects.

What Does The Power Interrupt Switch Do?

This safety feature automatically cuts power to the heating elements whenever the kiln lid or door is opened. It prevents accidental burns, protects elements, and resumes power only when safely closed. (Also called an automatic lid shutoff on Olympic kilns.)
Description

Jen-Ken AF3C 3" 2431 Ceramic & Pottery Kiln – Production-Grade Insulation & Power Options

The Jen-Ken AF3C 2431-3" upgrades the classic 2431 with 3" firebrick insulation for 20% more thermal efficiency, heat retention, and longevity — making it ideal for frequent firings and production use. Great for studios running multiple loads per day at cone 04–06, and capable of reaching cone 8 (2300°F) when needed.

Despite its generous capacity, it still fits through a standard 30" doorway. Lid lifters come included for effortless loading and unloading.

This model adds full electrical flexibility:

  • 45A NEMA 6-50 plug OR

  • 55A direct-wire (recommended for heavy high-fire cycles)

Choose Your Controller

Standard controller: Orton AutoFire 12-Key (AF3000)
Upgrades available:

  • Orton AutoFire Slide Touchscreen – PID precision, 35 schedules

  • TAP Touchscreen Smart Controller – Wi-Fi control, unlimited profiles, smart updates

Standard & Optional Enhancements

  • ✅ 3" brick walls/lid — included

  • ✅ Solid-State Relays — smooth, quiet, long-life firing

  • Furniture Kit available for multi-shelf production loading

Key Features

  • Best for studios, classrooms, and production potters

  • Cone 6 standard; cone 8 capable

  • True production insulation with 3" brick

  • Fits through standard 30" doors

  • 45A plug or 55A direct-wire options

  • Lid lifters included

  • Includes stand, manual, and 2-year warranty

Built for makers who fire often, fire big, and need a kiln that keeps pace with their growth — day after day, firing after firing.

Specifications
  • Model: AF3C 2431 3"
  • Inside Chamber Dimensions: 24" W x 31" H
  • Cubic Feet: 8.11
  • Maximum Temperature: 2300°F/1260°C
  • Elements: side firing
  • Kiln weight: 275 pounds
  • Volts: 240
  • Amperage: 45A with NEMA 6-50 Plug, 55A direct wired
  • Watts: 10,800 with 45A config, 13,200 with 55A config
  • Breaker: 60 amp for 45A config, 70A for 55A config
  • Circuit wire gauge: 6 with 45A config, 4 with 55A config

The furniture kit option includes:

  • 4 layers of shelves: 3 full, 2 half
  • 6 each: 1, 2, 4, and 6 inch posts
  • 1 pound of shelf primer
Current lead times

Estimated order-to-ship lead time is approximately 6 weeks.
